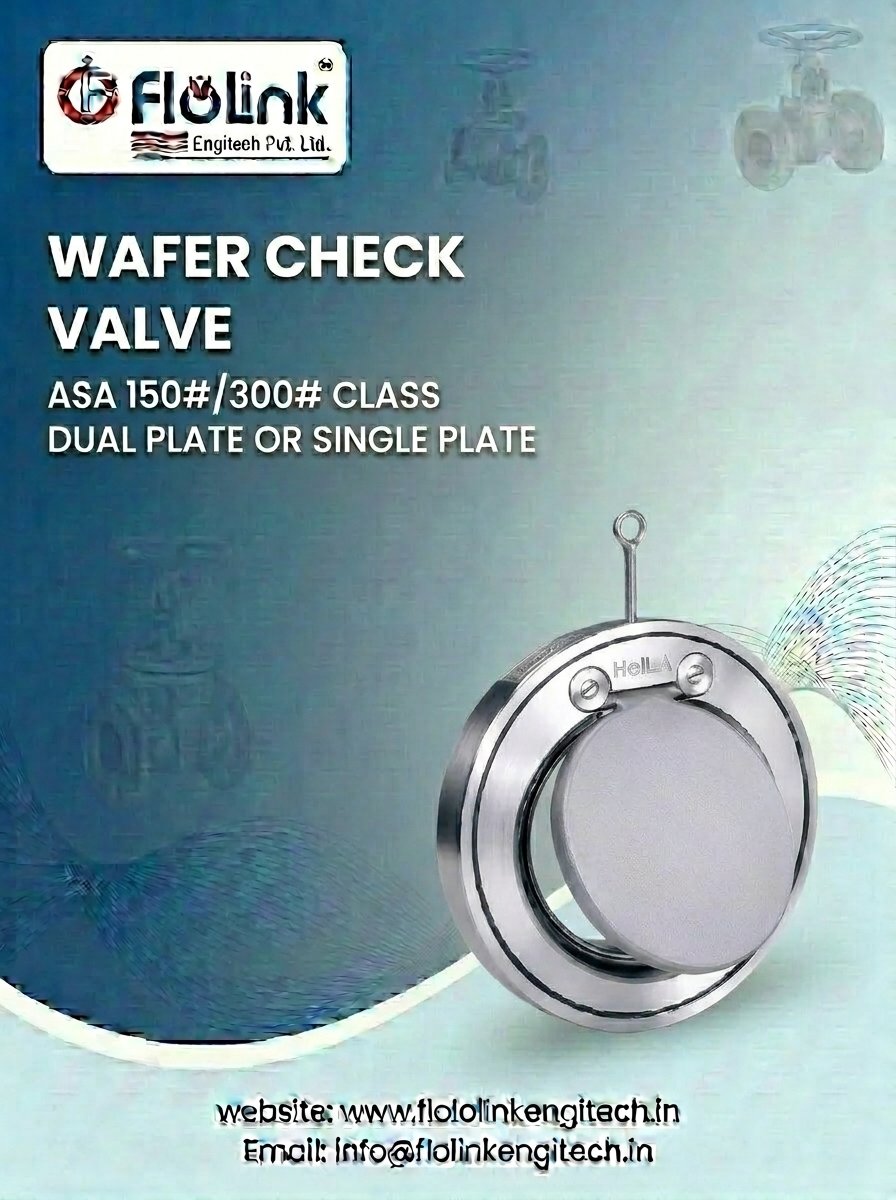

The Wafer Check Valves are designed for efficient backflow prevention in compact industrial piping systems. Manufactured using high-quality materials and precision engineering, these valves provide reliable automatic operation, leak-proof sealing, and minimal pressure loss across a wide range of applications.
With their lightweight wafer-type construction, the valves can be easily installed between flanges while reducing space and installation costs. They are widely used in water treatment, chemical processing, oil & gas, HVAC, power plants, and industrial fluid handling systems.
The Wafer Check Valves are high-performance non-return valves engineered to prevent reverse flow and protect industrial piping systems and equipment from backflow damage. Designed with a compact wafer-style body, these valves offer space-saving installation and lightweight construction while maintaining excellent durability and operational reliability in demanding industrial environments.
The valve operates automatically using a spring-loaded or disc-based mechanism that opens during forward flow and closes instantly when flow reverses. This fast response minimizes water hammer effects, reduces system pressure fluctuations, and enhances overall pipeline safety. Its wafer-type design allows direct installation between flanges, simplifying piping layouts and reducing installation time and maintenance costs.
Manufactured from premium-grade materials, the valve provides excellent resistance to corrosion, pressure, temperature variations, and wear. The precision-engineered sealing system ensures tight shut-off performance with minimal leakage, while the streamlined internal design reduces pressure drop and improves flow efficiency. Its robust construction supports long service life even in continuous industrial operations.
Widely used in industries such as water treatment, oil & gas, chemical processing, pharmaceuticals, HVAC systems, marine applications, power generation, and general industrial processing, the Wafer Check Valves are suitable for handling water, steam, air, oil, gas, and various industrial fluids. They are an ideal solution for applications requiring compact installation, efficient backflow prevention, low maintenance, and dependable flow control performance.
| Component / Standard | Specification |
|---|---|
| BODY | EN 8, Cf8, CF8M, |
| PIN | 13 Cr TO AISI 410 / 18 Cr 8 Ni TO AISI 304 / 316 |
| RINGS | MOULDED NEOPRENE / NITRILE / PTFE |
| MFG STD | FLOLINK |
| TEST STD | FLOLINK |
| ENDS | WAFER TYPE |
| HYD-TEST PRESSURE |
BODY : AS PER STD. SEAT : AS PER STD. |
| SIZE RANGE | 25 MM TO 600 MM |
